Mast Mount Antenna

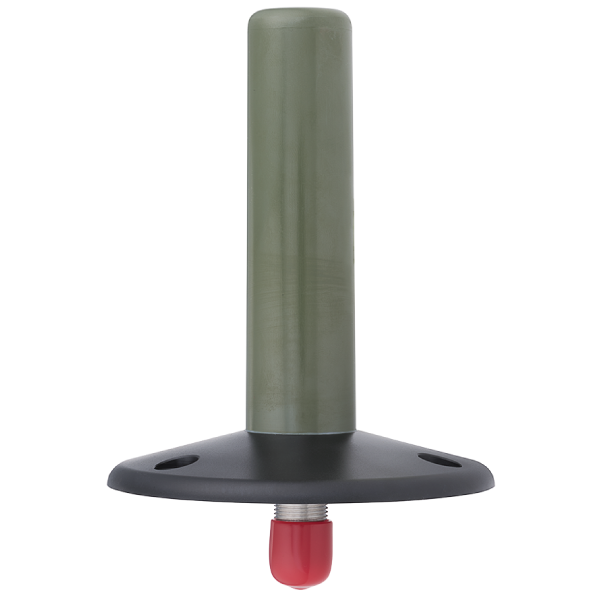

Model SAF5350-CX is the taller version of the SAF5350-C with higher gain. It is a passive, quad-helix L-band antenna designed to operate with the NAL Research’s A3LA and 960x series satellite modems and trackers. The SAF5350-CX is suitable for harsh environment and long term operations. It is impact, UV, chemical and jet fuel resistance.

Frequency Range: 1616.0 – 1626.5 MHz
Gain: 2.0 dBiC
Dimensions: 3.5” diam. x 6.6” H
Weight: 8.0 oz
Connector: SMA Female or TNC Female


Dimensions: 3.5″ Diameter x 6.6″ Height
Weight: 8.0 oz
Color: White/Black/Green/Gray
Connector: TNC Female
Ground Plane: Not Required
Operating Temp: –67°F to +185°F
Operating Altitude: 70,000 feet
Vibration: > 30 G’s
Frequency:  1616.0 to 1626.5 MHz
Axial Ratio: 2 dB
VSWR: Less than 1.5 : 1


Product Information
CAD Drawings (SA5350-C)
