AltNav version of SHOUT ts

SHOUT tsA

A-PNT

Description

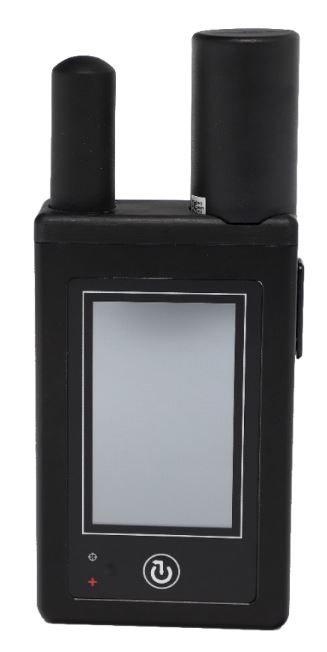

The SHOUT tsA is a handheld, global, two-way satellite messaging and personal tracking device capablee of obtaining Poistion Location Information (PLI) in the presence of enemy and environmental threats to GPS signal. It contains an Alt-RF receiver, high-accuracy L1 GNSS receiver, USB interface, and several low power micro-controllers. Maximize mission-life with it’s internal 3.6 A-Hr rechargeable Li-Ion battey; a 67% capacity increase from the SHOUT ts. Includes NAL SatTerm PC software for users to setup custom operating parameters, geofences, contacts, and canned messages.

Key Features:

  • Body-Worn Tracker & Messaging
  • Commercial GNSS & Alt-RF PNT
  • Guarded 911 Alert Switch
  • High-Resolution Touchscreen
  • Messaging
    • Free text
    • Canned messages
    • Combination of Both
  • 256-bit AES Encryption
  • Real-Time, Pole-to-Pole Coverage
  • Integrated Motion Sensor
  • 72-Channel GPS Receiver with
  • –160 dBm Sensitivity
  • Compatible Airtime Service(s): SBD

Use Cases

  • Normal Tracking: Programmed to wake up automatically and send a position report at an interval ranging from once per minute to once per day.
  • Emergency Alert: Send alerts to designated monitoring center using the 911 button. The monitoring center and user can then communicate to define further specifics for the emergency.
  • Messaging: Send free-text via four sets of different on-screen keyboards. Send canned messages in short codes for quick response or to save bandwidth. Send quick check-in message using a single soft key.
  • Waypoint Tracking: Send and / or save waypoints for later retrieval.

Specifications

Weight: ~15 oz (0.42 kg)
Dimensions: 4.76”L (122 mm) x 2.9”W (74 mm) x 1.2”D (31 mm)
I/O Interface: USB-C
Cooling: Convection Cooling
Enclosure: Hard, Anodized Aluminum (EMI shielded)
Input Voltage Range: 2.7VDC to 5.5VDC
Battery: 3.6A-Hr Rechargeable Lithium Ion
Operating Temperature: –4°F to +140°F (–20°C to +60°C)
Operating Humidity: < 75% RH

Documentation

Product Sheet
