QUICKSILVER

Key Features:

  • Mobile and desktop web-browser based management (Chrome, Firefox, Edge, Internet Explorer, and Safari compatible)
  • Operating system independent (e.g – Windows, Linux, iOS, and Android)
  • Software API for customized, embedded applications
  • Supports multiple IP protocols (e.g. – TCP, UDP, HTTP, HTTPS, etc.)
  • Supports popular encrypted voice / messaging apps (e.g. – Signal)
  • Alternate AT-command & RS-232 interface\
    • Drop-in upgrade for NAL A3LA products
    • Easy integration with serial-based systems
  • Multiple GPIO pins for control (including external ON / OFF)
  •

Product Resources:

Product Overview:

NAL Research Corporation’s QUICKSILVER QS-100 terminal delivers the latest Iridium Certus 100 mid-band service in a compact, rugged package for globally available on-the-move (OTM), over-the-horizon (OTH), and beyond-line-of-sight (BLOS) connectivity. Suitable for both standalone usage and embedded platform integration, it employs a small detachable passive, low-gain, omni-directional antenna, simplifying low-profile and low-visibility installations. The QUICKSILVER QS-100’s flexible integration architecture makes it the ideal upgrade from narrowband solutions to provide mid-band throughput performance, anywhere around the world, for file transfer, command and control (C2), telemetry, diagnostic monitoring, and other data transport applications.

Applications:

  • Land mobile, maritime, and aviation data upload / download from diverse platforms
  • Unmanned Systems C2 and Sensor Data
    • Land Robotics
    • Maritime Sensing
    • Aviation Platforms
  • Remote Sensor M2M / IoT Monitoring & Control
    • Weather Stations
    • Maritime Buoys
    • Environmental Monitoring
    • Infrastructure (Utilities, Oil, Gas)
  • Low-Profile Vehicle Data Links
    • Encrypted Data & Voice
    • Platform System Monitoring
rigid-hull-inflatable-boat-002
uuv - v1
UAV - RQ-21A_Blackjack
JLTV_EOS_RWS

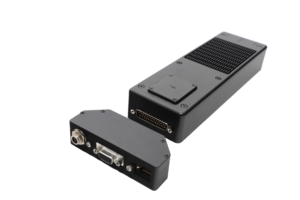

Data Adapter:

  • Breaks Out DB-25 Connector
  • 5-Minute Setup
  • Streamlined Maintenance

Iridium Antenna Options:

All Options: Passive, Omni-Directional, Helical Styles: Stub, Mast Mount, Puck, Blade Mounting Options: Screw-on, Through-Hole, Bolt, Magnetic Applications:

  • Fixed-site
  • Manned & Unmanned Platforms
  • Maritime, Land-Mobile, and Aviation Solutions

Default Antenna:

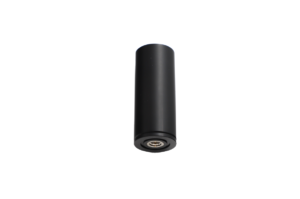

STUB: SAF9700

Size: 0.91” (23 mm) D x 2.25” (57 mm) H

Weight: 1.20 oz (34 g)

Gain: +2 dBic (at zenith)

Connector: SMA male

Additional Antenna Options:

PUCK: SAF9702

MAST-MOUNT: SAF9701

BLADE: Coming Soon
