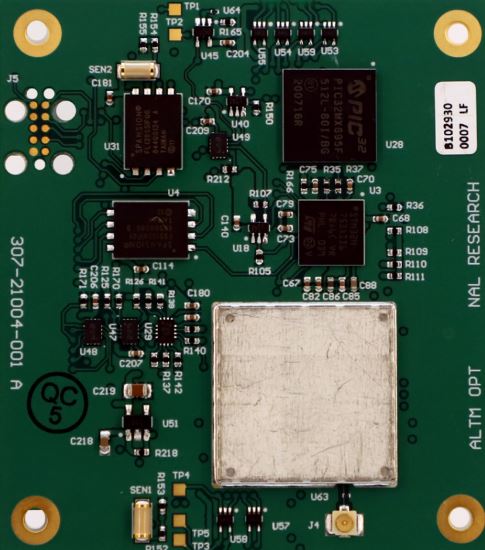

ALTM Gen2

A-PNT

Description

The second generation of the Alternative Location and Timing Module (ALTM GEN2) is a standardized, small form factor, AltNav receiver that provides Position / Location Information (PLI) and timing, independent of GPS. The ALTM GEN2 is designed to be employed during dismounted, ground-vehicle, and airborne operations. It is capable of tracking personnel, vehicles, and assets.

The ALTM GEN2 leverages a combination of an AltNav receiver, a UART serial port input for high-accuracy GPS, and a UART serial port for data I/O, and a 1 PPS timing signal. For robust operation and ease of integration the ALTM GEN2 receiver has two 40-pin Hirose connectors with power and digital interfaces for PLI signals.

The ALTM GEN2 was designed to be a drop-in replacement for the ALTM GEN1, providing the user with all the AltNav capabilities of the GEN1, as well as containing receiver improvements, power optimization and decision logic.

Specifications

Dimensions: 2.425″L x 2.125″W x 0.070″H (61.60 x 54.0 x 1.8 mm)
Weight: <3 oz (< 0.085 kg)
Interface Connector: 2x Hirose DF40C-40DP-0.4V(51)
Mating Connector: DF40C-(4.0)-40DS-0.4V(51) | AltNav Connector: Surface Mount u.FL
Cooling: Natural Convection
Mounting: Screw Standoffs
Oprating Temperature: —4°F to +158°F (-20°C to +70°C)
Input Voltage Range: 4.0-5.5 VDC
Voltage Input: Hirose 1/0 Connector
Average Power: 115W
Average Current Consumption: 230 mA @ 5.0 VDC

Documentation

Product Sheet
