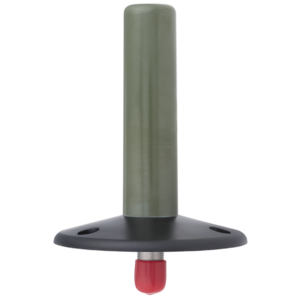

Portable Screw Mount Antenna

SYN7391-B

$302.40

Description

Model SYN7391-B is a pocket-sized, passive L-band antenna designed to operate with NAL Research satellite modems and trackers. The SYN7391-B is impact, UV, chemical and jet fuel resistant.

Frequency Range: 1610.0 – 1626.5 MHz
Gain: 4.9 dBiC
Dimensions: 1.54” L x 1.54” W x 0.37” H
Weight: 1.1 oz
Connector: SMA Male, SMA Right Angle Male, TNC Male
Color: White

Specifications

Dimensions:  1.54″ L x 1.54″ W x 0.37″ H
Weight: 1.1 oz without Cables
Color: White/Black/Green/Gray
Connector: SMA Male with 36″ Cable
Meterial: Plastic with Iridite Base
Ground Plane: Minimum of 2″ from all edges
Operating Temp: –40°F to +185°F
Operating Altitude: 70,000 feet
Vibration: > 30 G’s
Frequency: 1616.0 to 1626.5 MHz
Axial Ratio: 2 dB
VSWR: Less than 1.5 : 1



Documentation

Product Information
CAD Drawings
