Dual Iridium-Iridium Antenna

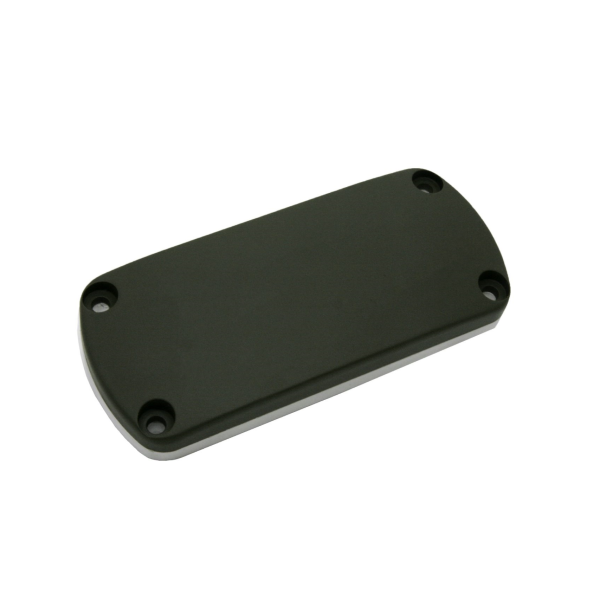

Model SAF4070-II is a low-profile dual Iridium®/Iridium® antenna designed to operate with the NAL Research’s A3LA and 960x series satellite modems and trackers. The SAF4070-II is suitable for harsh environment and long term operations. It is impact, UV, chemical and jet fuel resistant.

Frequency Range: 1616.0 – 1626.5 MHz
Gain: 4.9 dBiC
Dimensions: 5.03″ L x 2.08″ H x 0.69” H
Weight: 8.0 oz
Connector: TNC Female
Color: Green


Dimensions: 5.03″ L x 2.08″ W x 0.69″ H
Weight: 8.0 oz
Color: White/Black/Green/Gray
Connector: TNC Female
Ground Plane: Minimum of 2″ from all edges
Operating Temp: –67°F to +185°F
Operating Altitude: 70,000 feet
Vibration: > 30 G’s
Frequency:  1616.0 to 1626.5 MHz
Axial Ratio:  2 dB
VSWR: Less than 1.5 : 1


Product Information
CAD Drawings
