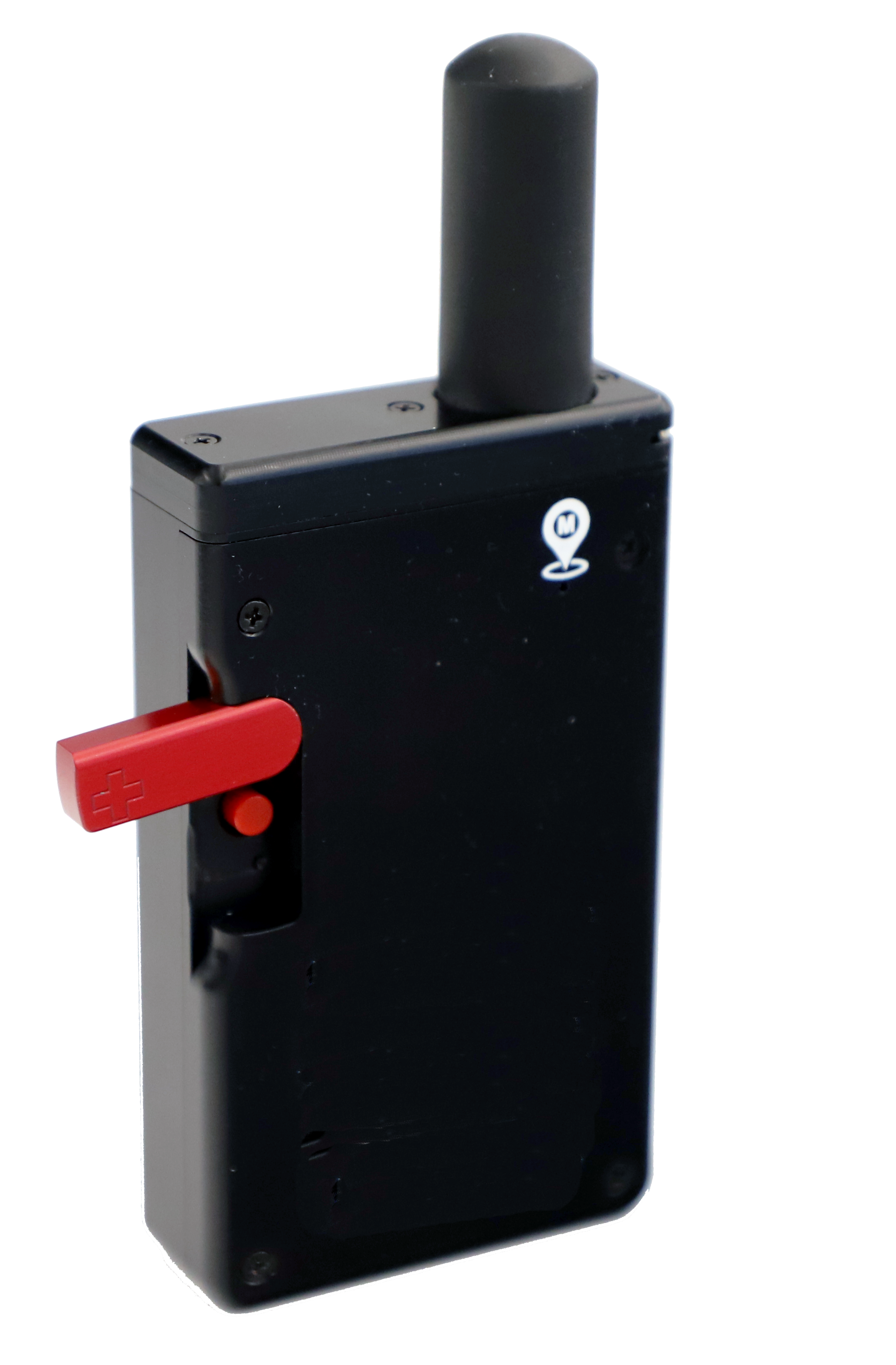

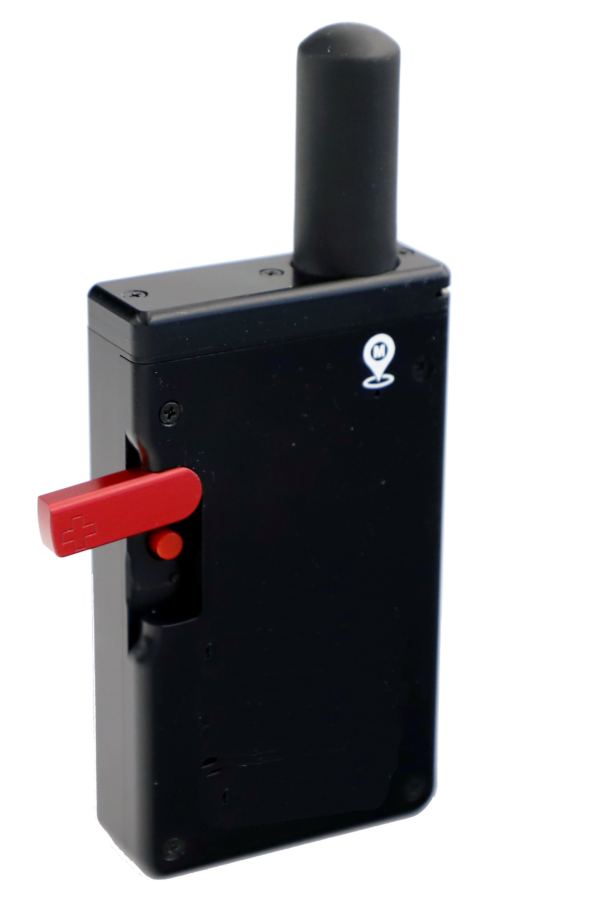

Handheld Tracker with Touchscreen/Removable Antenna





The SHOUT mcc is a new variant of the SHOUT product line, designed to satisfy the DoD requirements for M-Code-based GPS. The SHOUT mcc is a waterproof, handheld, global, two-way satellite messaging and personal tracking device. It utilizes Iridium® Short Burst Data (SBD®) service to provide location information determined by a GNSS receiver, two-way inbound & outbound status, SMS, and emergency notifications.

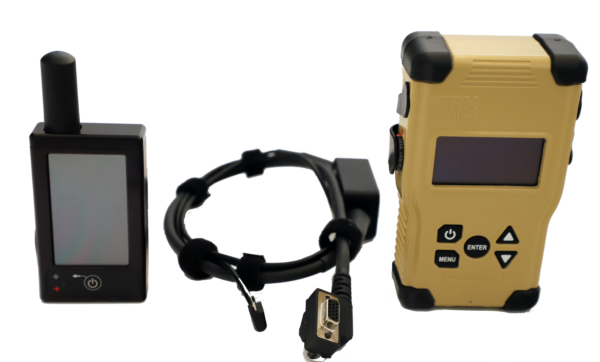

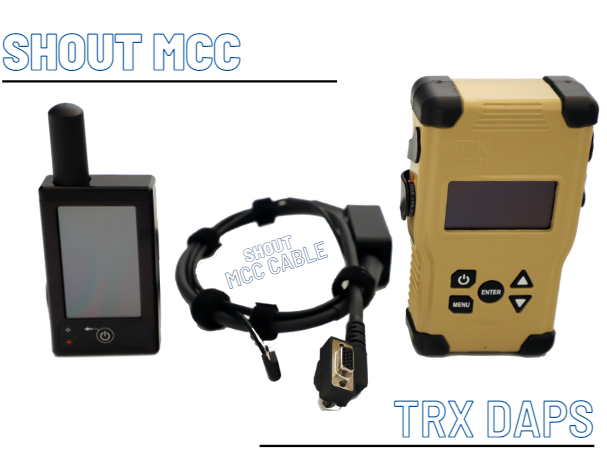

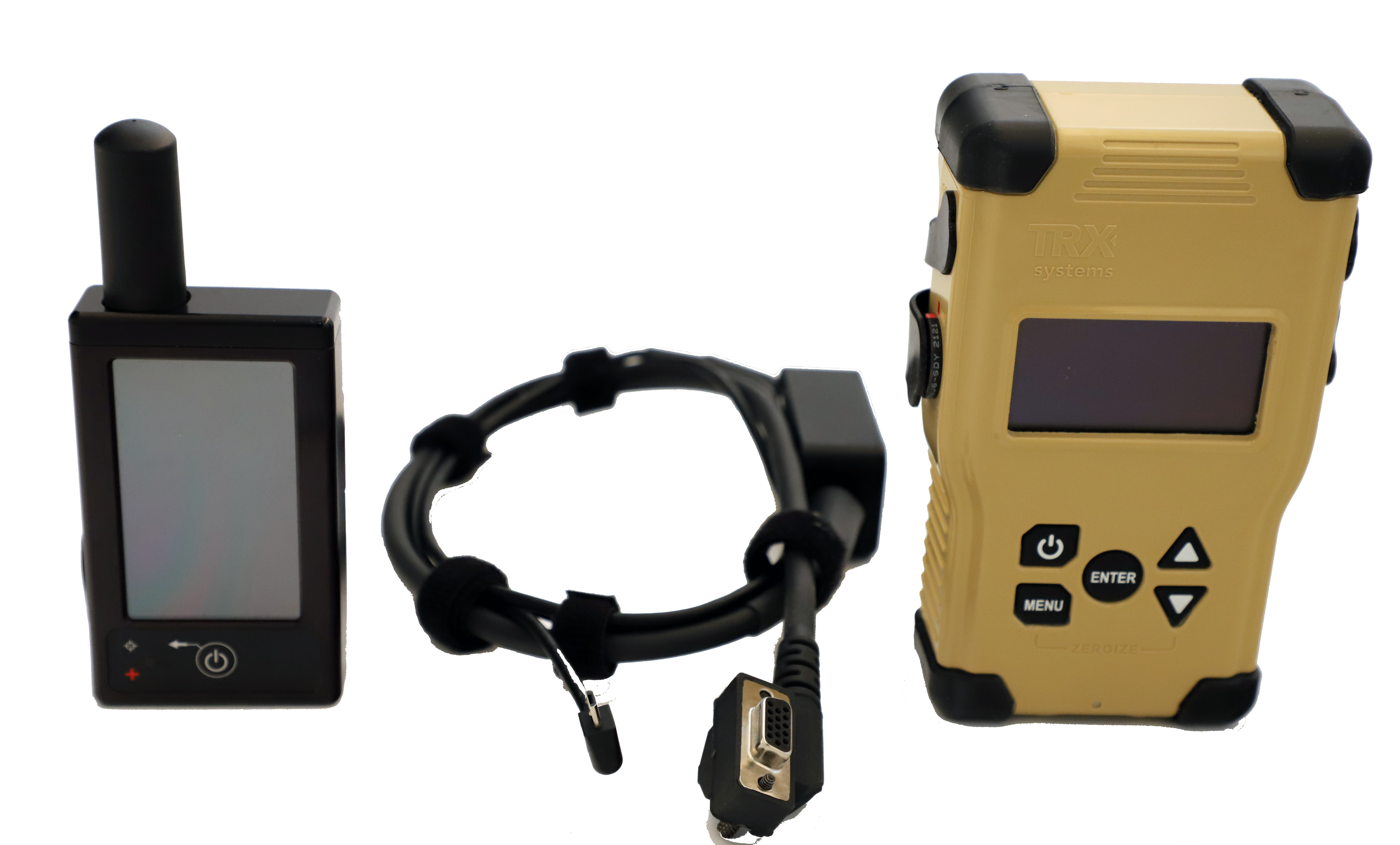

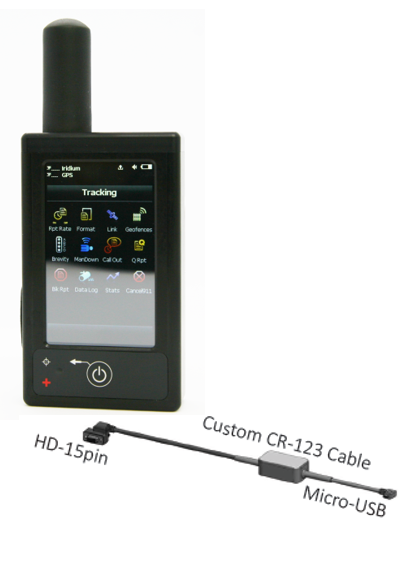

The SHOUT mcc connects externally to the TRX DAPS II device M-code receiver (in addition to its standard internal commercial GNSS receiver) to obtain accurate Position Location Information (PLI) in the presence of enemy and environmental threats to GNSS signal. This anti-jamming, anti-spoofing capability is made possible through an exclusive redesign of the SHOUT by NAL Research®.

To request a quote, please contact sales@nalresearch.com.

Key Features:

  • M-Code Compatible
  • Body-Worn Tracker
  • Commercial GNSS
  • Guarded 911 Alert Switch
  • High-Resolution Touchscreen
  • Free & Canned Messaging
  • 256-bit AES Encryption
  • Real-Time, Global Coverage
  • Integrated Motion Sensor
  • 72-Channel GNSS Receiver with –160 dBm Sensitivity
  • Airtime Service(s): SBD


Dimensions  104 mm x 58 mm x 23 mm (4.1″ x 2.3″ x 0.9″)
Weight 204 g (7.2 oz)
Battery  Rechargeable Li-Ion 1.95 A-Hr Single Cell 3.6V to 4.2V
I/O Interface: Standard USB Micro B
Software Interface: AT Commands through USB
Operating Temp: –20°C to +60°C (–4°F to +140°F)
Operating Humidity: < 75% RH
Operating Frequency:  1616.0 to 1626.5 MHz
GPS Frequency:  1575.42 MHz (L1 carrier)



SHOUT mcc Quick Start Guide (rev A 2023-01-30)

SHOUT-mcc-User-Guide-Appendix-M-(Rev A 2023-05-05)

SatTerm v9.1.1 Setup

Server for Trackers 8.6.5
